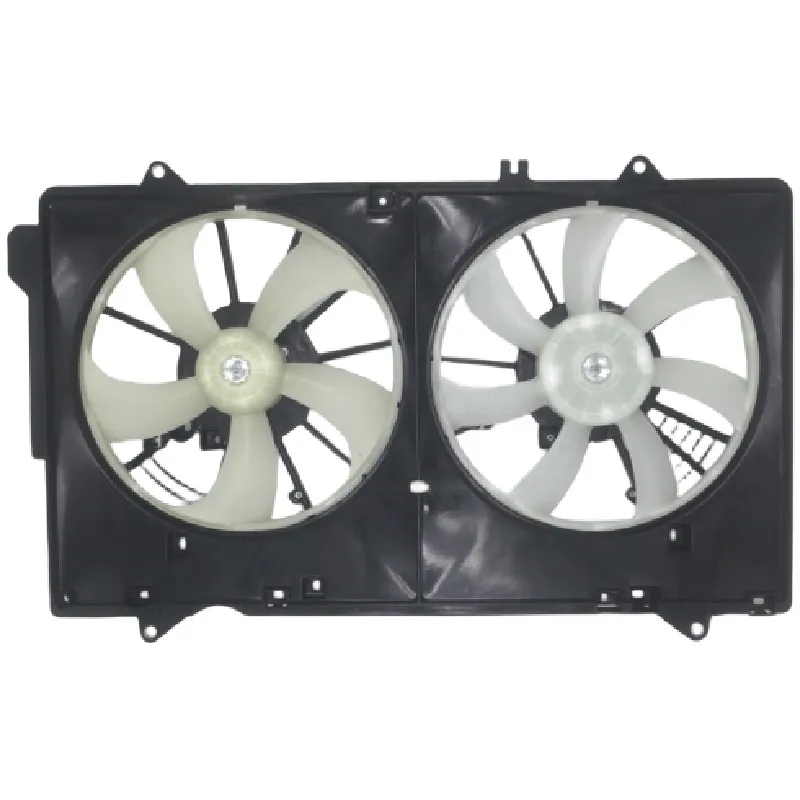

PE01-15-210 Radiator Fan for MAZDA CX5

PE01-15-210 Vehicle Cooling Fan Assembly

This vehicle cooling fan, referenced by PE01-15-210, supports MAZDA CX5 replacement programs where connector, shroud and mounting geometry are confirmed.

The component forms one part of the cooling control chain together with sensors, relays, wiring, modules, coolant and the radiator.

Application Data

Assembly: Electric radiator fan assembly

Key OE number: PE01-15-210

Related references: PE01-15-140, PE01-15-150, PE02-15-140

Vehicle reference: MAZDA CX5

Supplier item number: 6106-046

Delivery form: Match the product photographs supplied on this page

Operating Purpose

Overheating at road speed can have causes beyond the fan; workshop diagnosis should consider the radiator, coolant flow and broader cooling circuit.

Use a suitable scan tool or approved test method where the manufacturer provides command and temperature data.

Dispatch and Installation Review

Pre-shipment inspection focuses on the electrical connection, fan-wheel movement, exterior frame condition and consistency with the listed assembly.

Installation should be completed by a qualified technician after the engine and coolant system have cooled and the battery has been isolated.

Product Technical Specifications

Product type: Radiator Fan Assembly

Primary OE reference: PE01-15-210

Cross-reference numbers: PE01-15-140 PE01-15-150 PE02-15-140

Internal item code: 6106-046

Vehicle brand: MAZDA

Vehicle model: CX5

Model year: Confirm by vehicle application

Installation position: Radiator / front cooling-module area

Product function: Provides forced airflow through the radiator area to support heat exchange at low vehicle speed

Match the Removed Assembly

Before ordering, check whether the required item is the complete fan-and-shroud assembly shown or a different motor, blade or frame configuration.

For mixed fleets, identify each vehicle version separately instead of assuming one fan fits every year.

International Supply Options

For repeat purchasing, buyers can reference PE01-15-210 and AutoParts product number 6106-046 in the enquiry.

International delivery support is available, while freight method and transit time depend on the consignee location.

Technical Buyer Questions

How long does delivery normally take?

Plan approximately 30–45 days, while the quotation will state the current production and dispatch schedule.

Can packaging be customized?

Yes. Share branding, artwork and volume requirements so packing feasibility can be reviewed.

Is this a universal radiator fan?

It should not be treated as universal because the plug, dimensions and mounting layout are application dependent.

Can a model name alone confirm compatibility?

No. One model can use different cooling packages, so OE number, engine or production details and the original assembly should also be checked.

Request a Quote: Contact AutoParts with the OE reference, application and delivery country to confirm the correct fan.

Configuration: Supplied in the photographed product configuration

Selection Features: OE-based procurement supported by dimensional and installation-layout checks

Pre-Shipment Check: Connector, mounting layout and fan-wheel movement checked before packing

MOQ: From 5 pieces

Packaging: Neutral or customized packaging available

Typical Delivery: 30–45 days, subject to quantity and destination

Fitment Check: Confirm whether the order requires a complete fan-and-shroud assembly or another configuration.
